MySQL is the most widely used open-source database in the world. MySQL is easy to set up and use, despite its powerful features. Essentially, designing and development of the web-based applications require remote access and retrieval of dynamic web pages and database. Further, on various platforms, there are numerous methods for connecting and retrieving data for web documents.
MySQL database is the most widely used open-source database system out there, and it is currently installed on more than two million servers worldwide. The paper examines various MySQL connectivity methods it further describes to establish connection to MySQL server. Fundamentally, huge amounts of data are generated from a variety of sources, including social media, hospital management, banking systems, and academics institution systems, as technology advances. Therefore, remote connection of new applications to MySQL server help in monitoring web-based applications via a web browser. For an application require appropriate connection parameters to securely connect to the MySQL server properly. Although various connection parameters are having default values, database engineers are normally at liberty to override the default values.
Connecting to MySQL Using an SSH
The MySQL server normally listens to the localhost since it is the default host. However, most distributed applications necessitate remote connection to a remotely hosted servers. To this end, configuring the MySQL server to allow remote connections is one option; however, this requires administrative rights and may pose security risks. A safer alternative would be to establish an SSH between the remote server and the local system. Furthermore, an encrypted SSH connection can be established using SSH tunneling to relay service ports between a client and server machine. Linuxize establishes how to connect to the MySQL server from a remote client via an SSH in this guide. MariaDB follows the same instructions. First, it involves the creation of an SSH on Linux and macOS systems using command as shown in the example below.
ssh -N -L 3336:127.0.0.1:3306 [USER]@[SERVER_IP]
Where:
- N – communicates with SSH not to perform an isolated command.
- L 3336:127.0.0.1:3306 – Generates a local port dispatching. The local port (3306), the target IP (127.0.0.1) and the isolated port (3306) are divided with a colon (:).
- [USER]@[SERVER_IP] – The isolated SSH client and host IP address.
- To initiate the command in the background, use the -f choice.
- The –p [PORT_NUMBER] option should be used to specify the port on which the SSH server is listening if it is not on port 22 (the default).
An SSH client application must first be downloaded and installed for Windows users.
Instruction for Connecting Using Dbforge Studio
Through the Database Explorer window, dbForge Studio for MySQL gives you a visual, quick, and easy way to manage database connections. Therefore, the following actions are performed to ensure proper creation of server using dbForge Studio for MySQL.

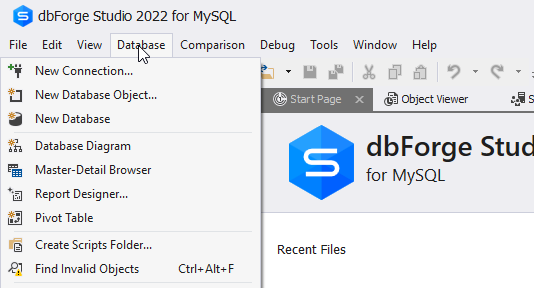

1. The windows dialogue box is opened by clicking new connection button on the database menu to pop up the window.

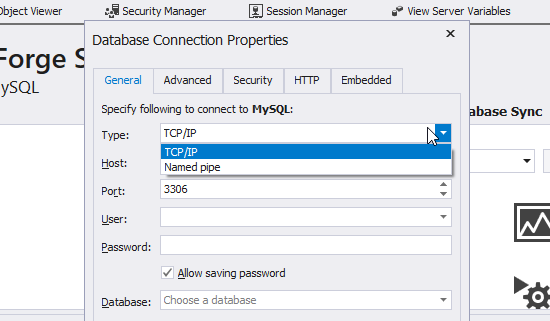

2. The user then selects his/her preferred connection type from the dialogue box. There are two connection types (TCP/IP or Named pipe) to be selected from.

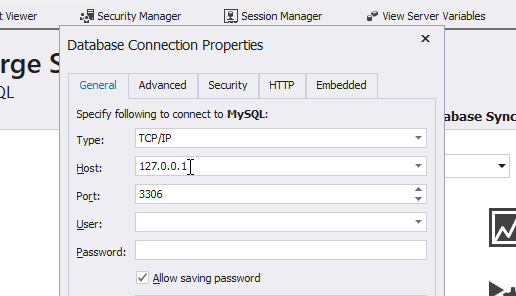

3. In the Host field, the user inputs the host name.
4. For the TCP/IP the user enters the MySQL port details while for the Name pipe the user enters pipe name in their respective input boxes.

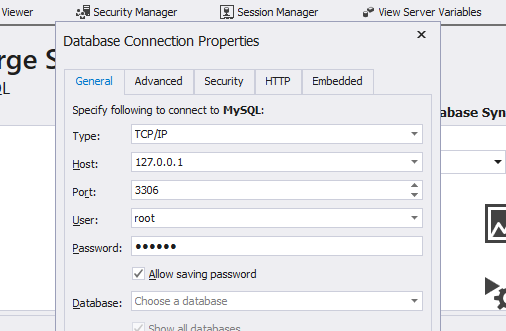

5. The user then input login credentials depending on the connection type he/she had earlier selected.

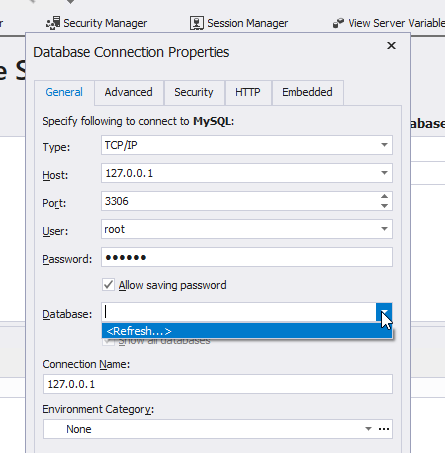

6. The user then types or select the name of the database he/she wants to connect under Database.
7. The Hostname should be used to automatically generate the Connection Name. The user can give the new connection a unique name.
8. Finally, to establish the connection, the user should select OK.
Summary
Scalability, dependability, high performance, and adaptability are all features of the powerful open-source database management system known as MySQL. We presented the Devart solution, dbForge Studio for MySQL, because we require a GUI tool to fully administer and interact with MySQL Server. For the management, administration, development, data analysis, and reporting of MySQL and MariaDB, this adaptable tool offers extensive features and robust functionality. In addition, dbForge Studio lets users easily compare and sync schemas, visually build queries, debug scripts, and create huge amounts of test data. Utilize our MySQL tutorials to familiarize yourself with the functionality and learn how to use dbForge Studio for MySQL.
